Adding Custom Radars

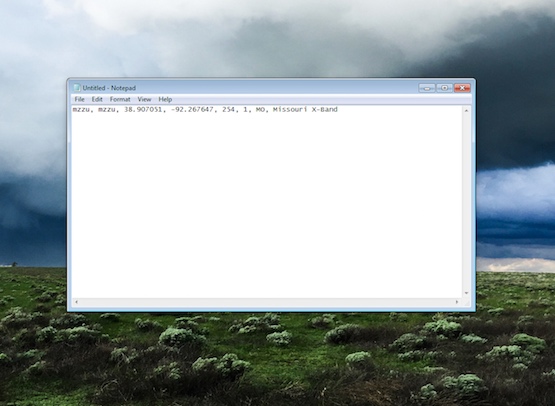

1) Start by opening Notepad or any other text editor.

2) Insert the radar name and coordinates (Below are radars you can get data for via AllisonHouse). Then save as "customradars.gis" (make sure there is no .txt at the end) somewhere on your computer. Do NOT save in the GR2Analyst program directory.

koun, koun, 35.236000, -97.462219, 360, 1, OK, Norman Testbed
dan1, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 SUPER,RESOLUTION
dop1, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 RECOMBINED
fop1, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 RECOMBINED
rop3, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 SUPER RESOLUTION
nop3, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 SUPER RESOLUTION
nop4, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 SUPER RESOLUTION
rop4, kcri, 35.238274, -97.460030, 366, 1, OK, BUILD 12 SUPER RESOLUTION
mzzu, mzzu, 38.906, -92.269, 271, 1, MO, Columbia/Mizzou
kulm, kulm, 32.529, -92.012, 29, 29, LA, Monroe/ULM
op5r, op5r, 63.922, -145.833, 522, 13, AK, Fort Greely
k08d, kbis, 48.301448, -102.401416, 684, 1, ND, Stanley ARB
kxwa, kbis, 48.263439, -103.747327, 729, 1, ND, Williston ARB
fusa, fusa, 38.86949, -75.81616, 36.40, 29, MD, FUSA/Denton
khdc, khdc, 30.519, -90.407, 30, 1, LA, Henderson

3) Stop Polling

4) Drag and drop your customradars.gis file into GR2Analyst

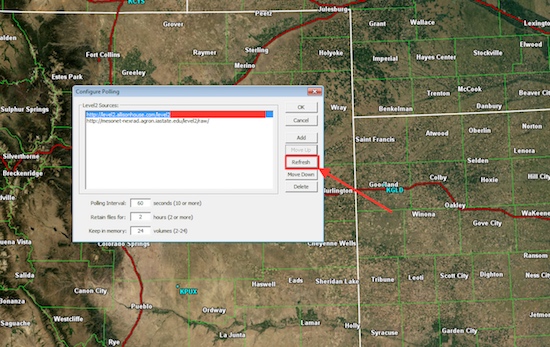

5) Refresh your AllisonHouse Level 2 data source by selecting File >> Configure Polling >> Refresh (Make sure your AllisonHouse feed is highlighted)

6) Select "OK"

7) Start Polling

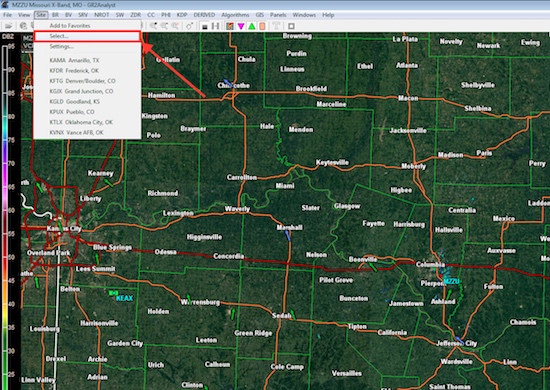

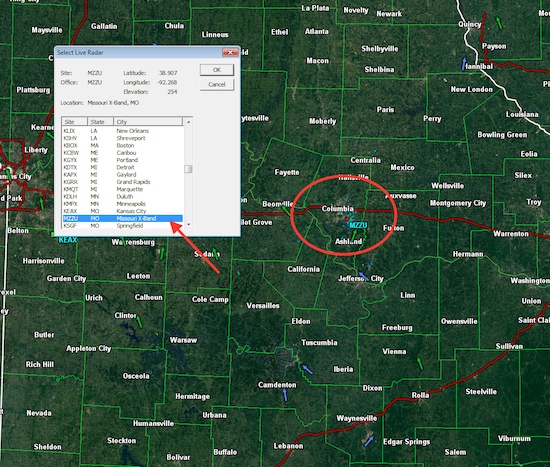

8) Select Site >> Verify that your new site(s) appear in your Live Radar List.  (See Below).

9) Once you confirm the radar site is there, close out of the program and restart it to ensure that your new settings are saved.
